2660 Exercise – Add New TLD data

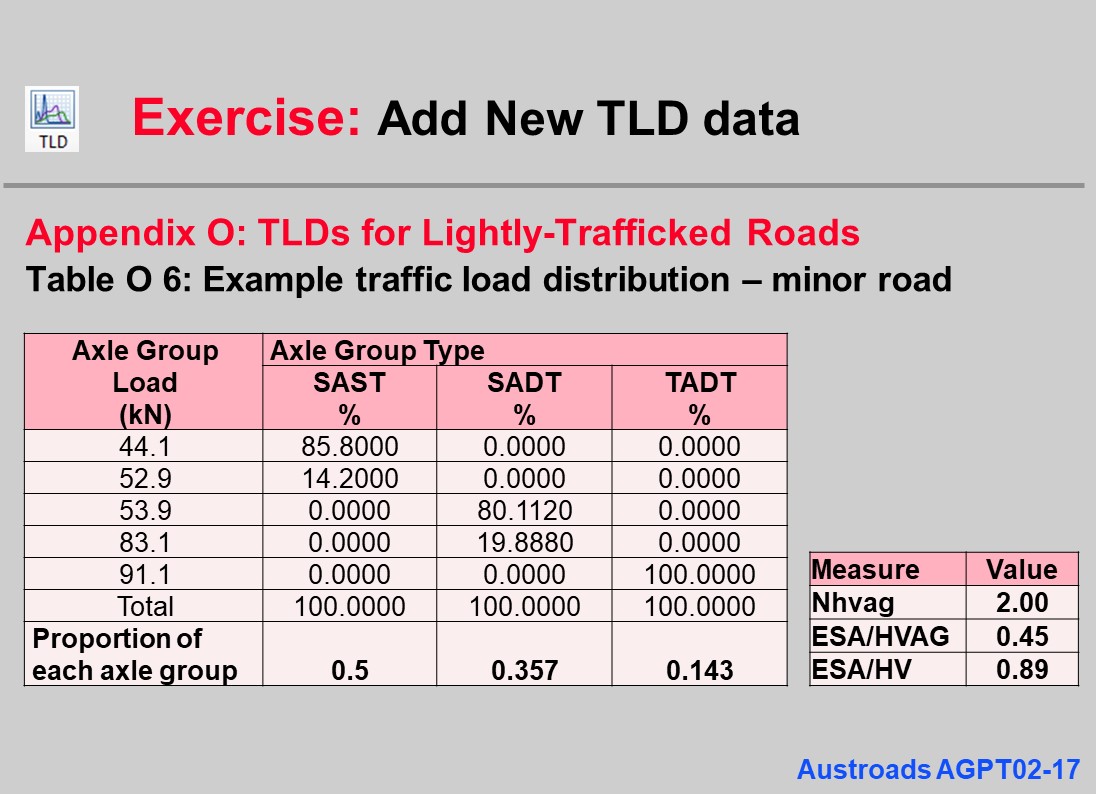

For this Exercise you are going to Import Table O 6: Example traffic load distribution – minor road from Appendix O: TLDs for Lightly-Trafficked Roads in Austroads Guide AGPT02.
You need to be running CIRCLY 7.0 (30 June 2020) or later.
Download and install CIRCLY 7.0. (you will need to Register and Log-in to access this content. Click here to get started)

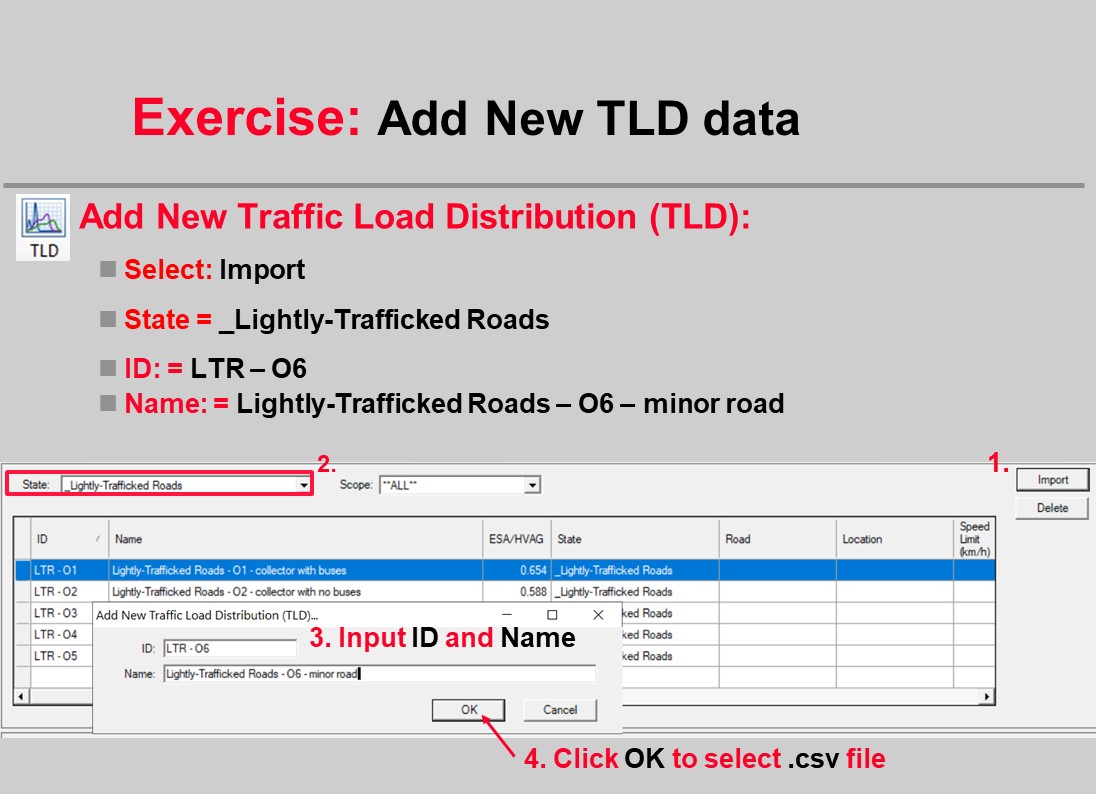

Use these parameters:
ID: LTR – O6
Name: Lightly-Trafficked Roads – O6 – minor road

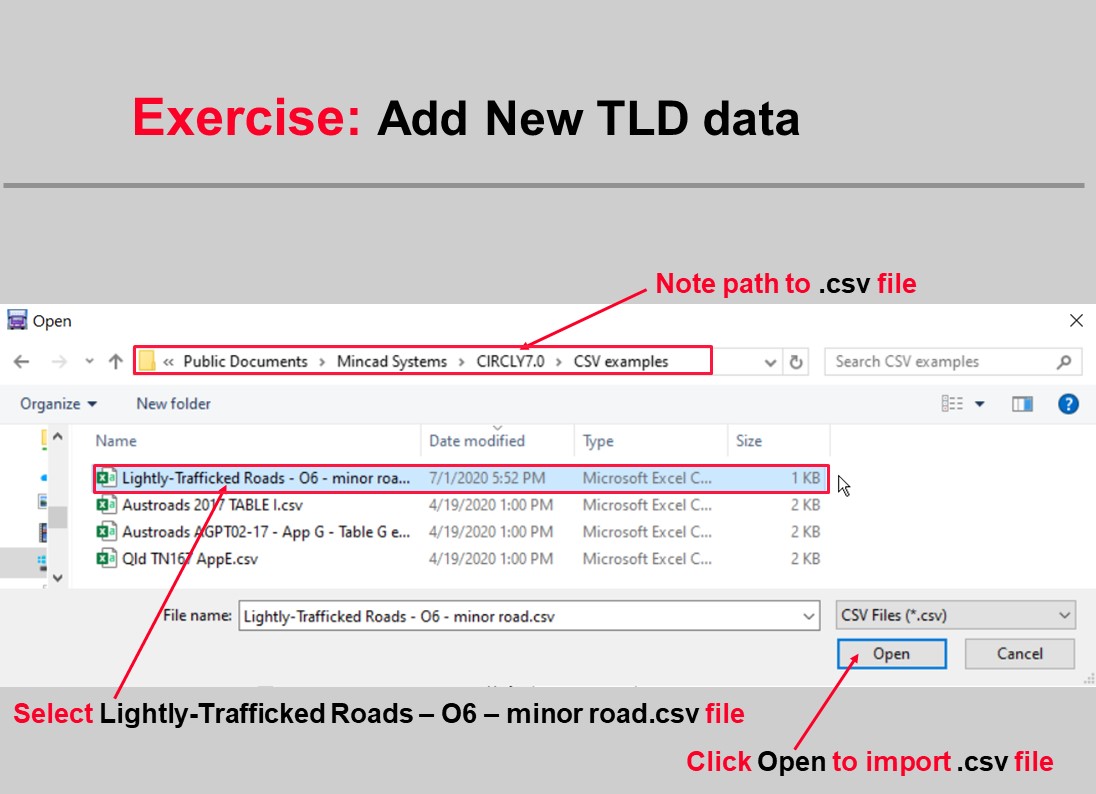

The Path to the CSV file is:
C:\Users\Public\Documents\Mincad Systems\CIRCLY7.0\CSV examples
